Queensland Speed Boards





Photos - QSM Collection

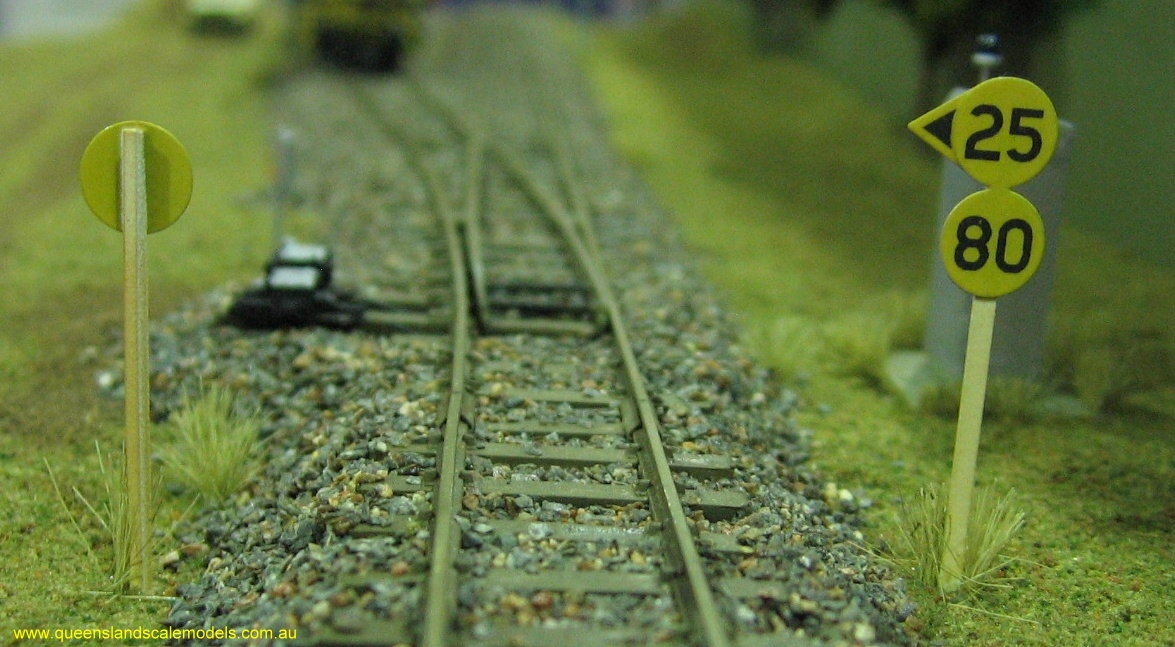

The 1:87 Scale Queensland Speed Board Packs 1 & 2 depict the style of Speed Board used on the Queensland system for many years.

Our Queensland Speed Boards are made from etch brass sheet and require individual assembly and painting by the modeller. Decal sheets provide the black numbers and letters in the correct font and size, as well as the arrows for the diversion boards. Assembly and installation instructions are included which provide guidelines for the correct installation of these 1:87 scale Speed Boards in keeping with the prototype railway practice.

Pack No.1 covers standard mainline Speed Boards and speeds from 60 km/h to 120 km/h as well as the letters "SN" for "Speed Normal". Pack No.2 contains standard Speed Boards and Speed Boards fitted with diversion arrows, commonly seen at stations and passing loops. Speeds covered in Pack No.2 range from 10 km/h to 50 km/h. The packs can be combined to complete a wide range of model Speed Boards to give your layout the "Queensland look".

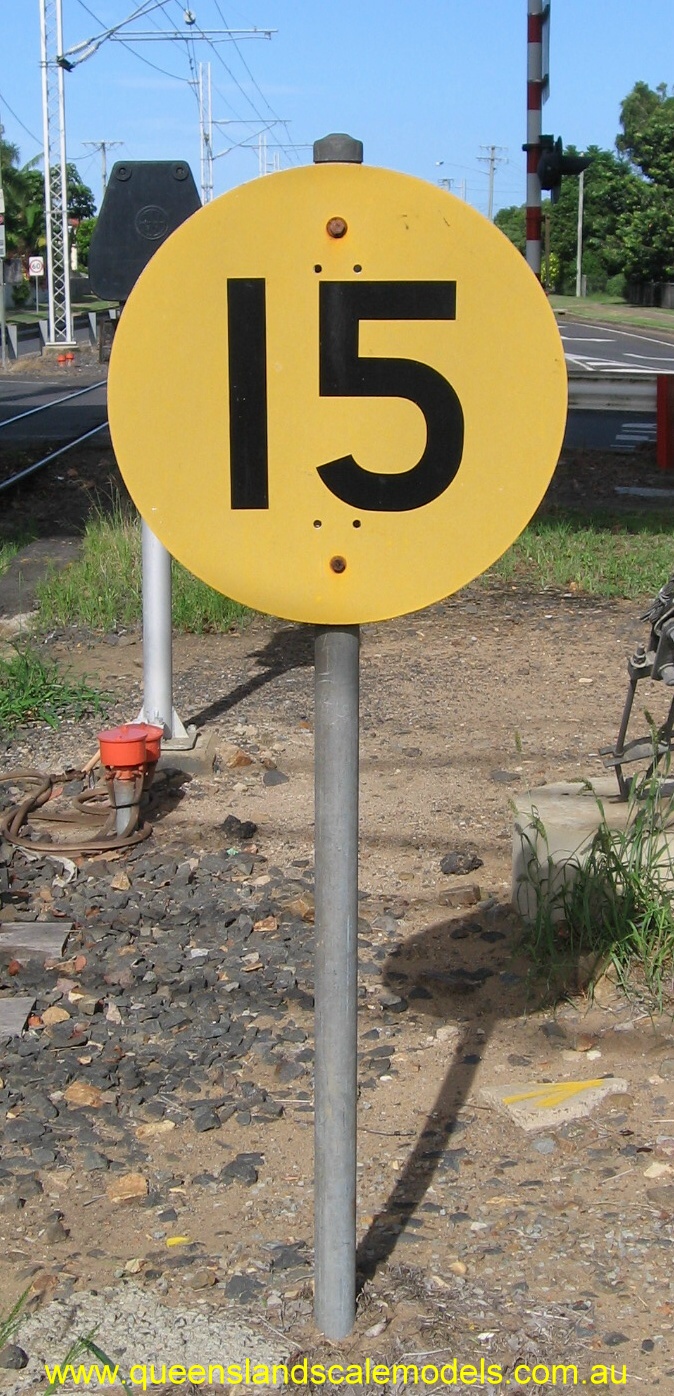

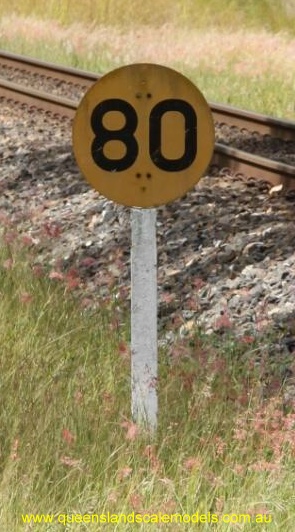

Most Speed Boards are mounted on a round steel post, but some have been noted fixed to back of used rails. We have included 0.8mm brass rod posts in each pack, but the boards can be mounted on the back of rail if desired by the modeller.









QSM-SB1
1:87 Scale
Queensland Speed Board - Pack No.1

Pack Contains:

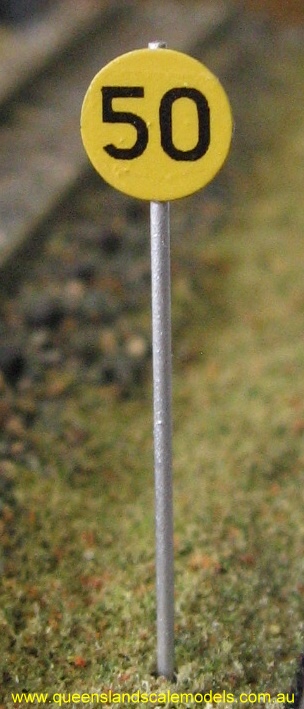

Etch Brass Sheet - 24x Brass Standard Speed Boards

Brass Rod 24x 0.8mm Brass Rod Posts

Decal Sheet - 4x Black Number - 60
  4x Black Number - 70
  4x Black Number - 80
  4x Black Number - 90
  4x Black Number - 100
  4x Black Number - 120
  4x Black Letters - SN

  Assembly & Installation Instructions Included

  PRICE - $33.00 per pack
Available Now





QSM-SB2
1:87 Scale
Queensland Speed Board - Pack No.2

Pack Contains:

Etch Brass Sheet - 12x Brass Standard Speed Boards

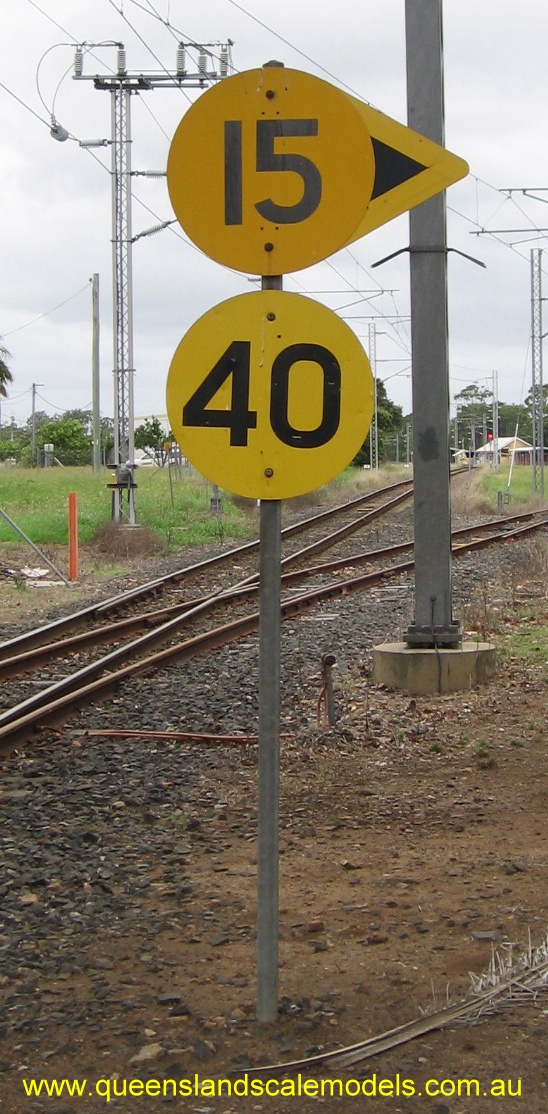

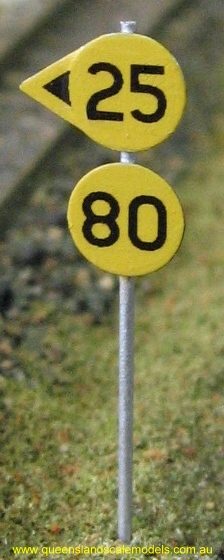

  6x Brass Speed Boards with Diversion Board
  6x Brass Speed Boards with Twin Diversion Boards

Brass Rod 24x 0.8mm Brass Rod Posts

Decal Sheet - 4x Black Number - 10
  4x Black Number - 15
  4x Black Number - 20
  4x Black Number - 25
  4x Black Number - 30
  4x Black Number - 35
  4x Black Number - 40
  4x Black Number - 50
  18x Black Diversion Board Arrows

  Assembly & Installation Instructions Included

  PRICE - $33.00 per pack
Available Now




Order Form

Queensland Speed Boards Order Form

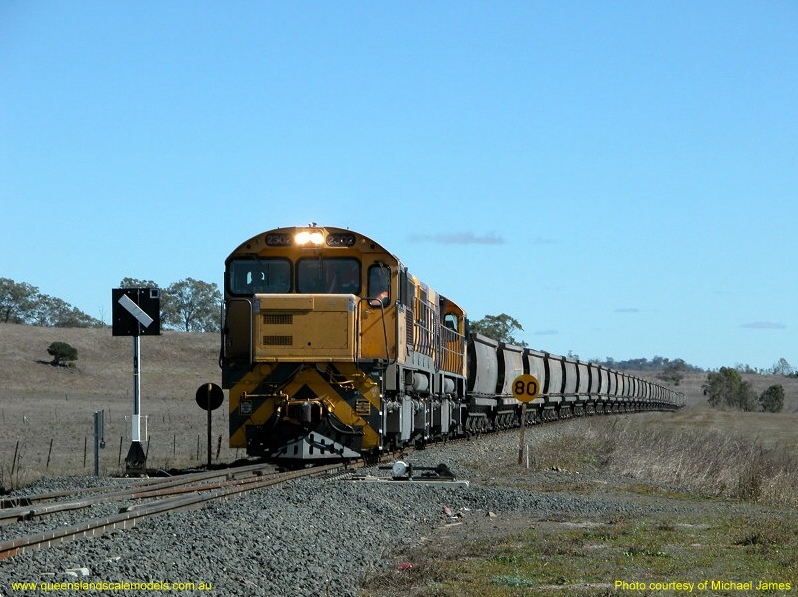

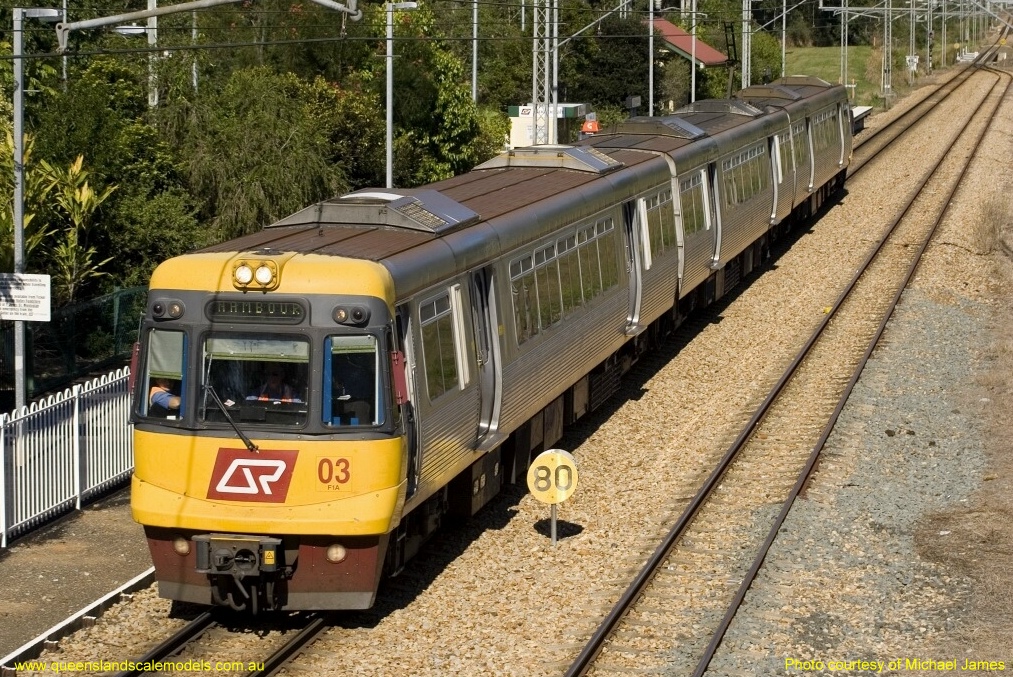

Photo courtesy of Michael James

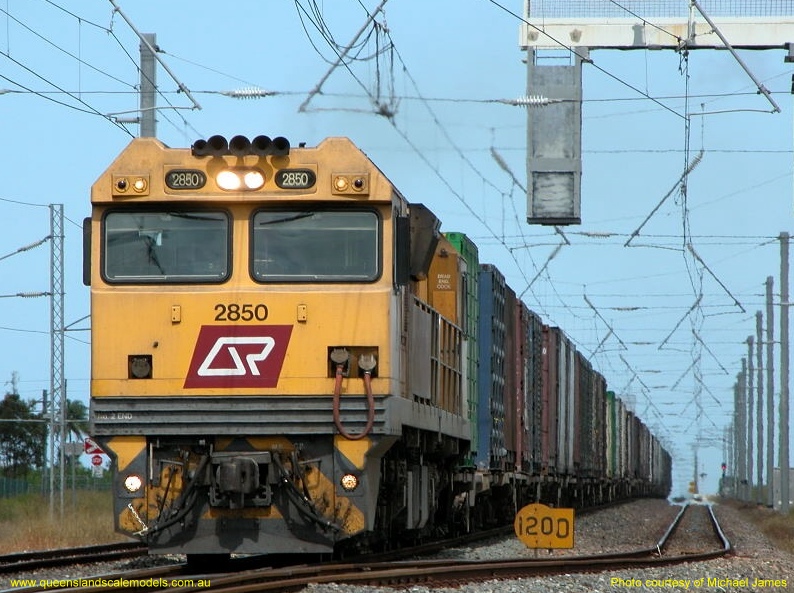

Photo courtesy of Michael James

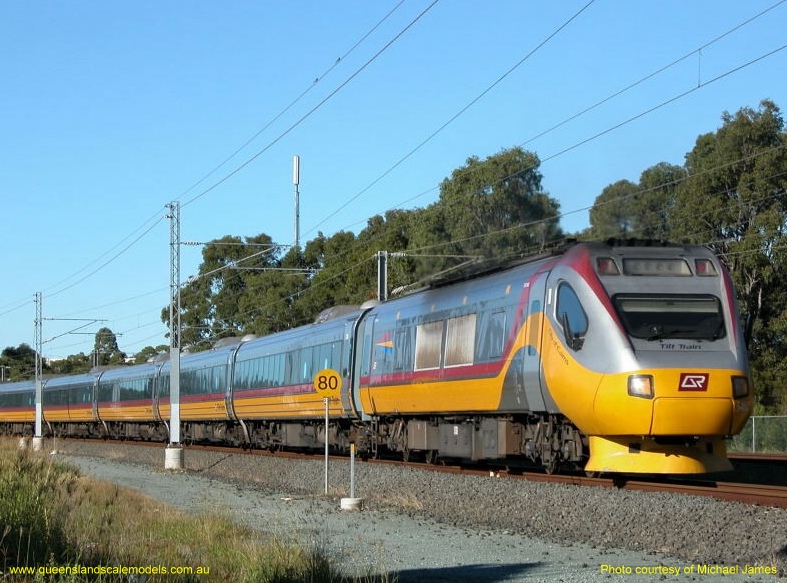

Photo courtesy of Michael James

Photo courtesy of Michael James
